Amplifiers
| Part Numner | Min Freq | Max Freq | Gain | In/Out VSWR | P-1dB | Bias | |
|---|---|---|---|---|---|---|---|
| (GHz) | (GHz) | (dB) | (:1) | (dBm) | VDC | ||
| KBB0150-1417-FF | 1.0 | 50.0 | 14.0 | 1.90 | +17.0 | 7-9 VDC @ 225mA | Datasheet |
Waveguide to Coax Adapters
| Part Number | Freq Min | Freq Max | VSWR | Insertion Loss | Waveguide | Coax Connector | |
|---|---|---|---|---|---|---|---|
| (GHz) | (GHz) | :1 max | dB max | ||||
| TWR10-1mm-F | 75.0 | 110.0 | 1.40 | 0.75 | WR-10 | 1.0 mm F | Datasheet |
| TWR12-1mm-F | 60.0 | 90.0 | 1.40 | 0.75 | WR-12 | 1.0 mm F | Datasheet |
| TWR15-1mm-F | 50.0 | 75.0 | 1.40 | 0.75 | WR-15 | 1.0 mm F | In Development |
Frequency Multipliers
| Part Number | Input Freq | Input Power | Output Freq | Output Power | Harmonics | |
|---|---|---|---|---|---|---|
| (GHz) | (dBm) | (GHz) | (dBm) | (dBc) | ||
| x2-1842-KFKF | 9 – 21 | +2 to +4 | 18 – 42 | +15 typ / +10 min | -20 dB typ / -15 dB min | Datasheet |
Custom RF Waveguide Filters

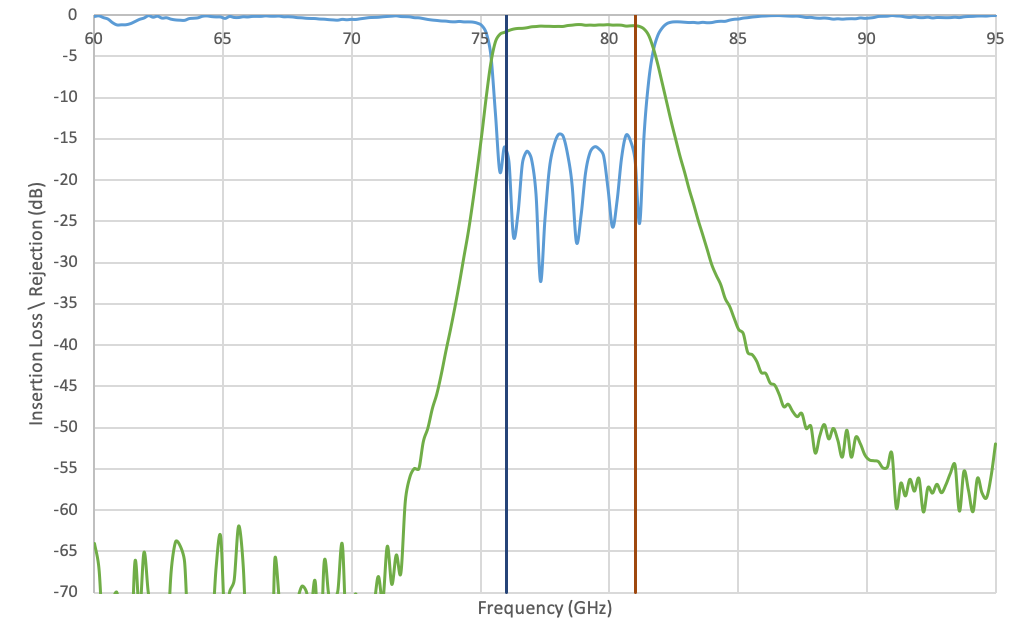

Williams RF Works has the infrastructure to simulate, produce , and test millimeter wave filters with 1 to 7% band widths. We can custom design filters at reasonable pricing and lead times.
Filters are available from 26.5 to 140 GHz (WR-28 to WR-8). Please feel free to contact us with any questions. Needed parameters can be found in Filter Quote Info Hyperlink.
| Part Number | Band Width | Insertion Loss | Rejection | VSWR | |
|---|---|---|---|---|---|
| (%) | (dB) | (dB) | (:1) | ||
| BPF##-#### | 1 – 8% | 1.5 | -20 @ 3% away | 1.4:1 typ | Filter Quote Info |
WRFW is in the process of developing several new products which will be released soon. If you have a component specification please contact us and we will develop a product suited to your needs. We look forward to hearing from you.
